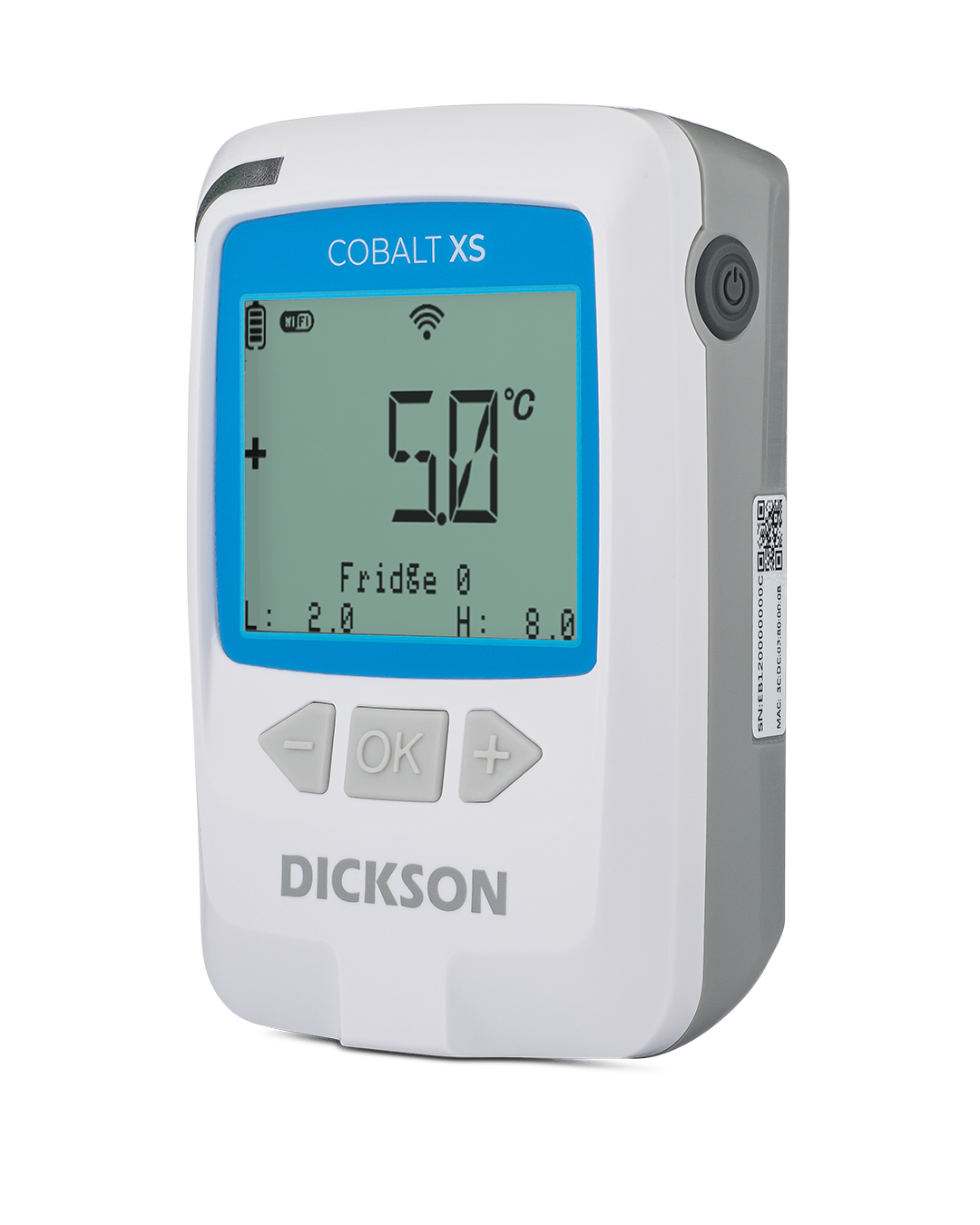

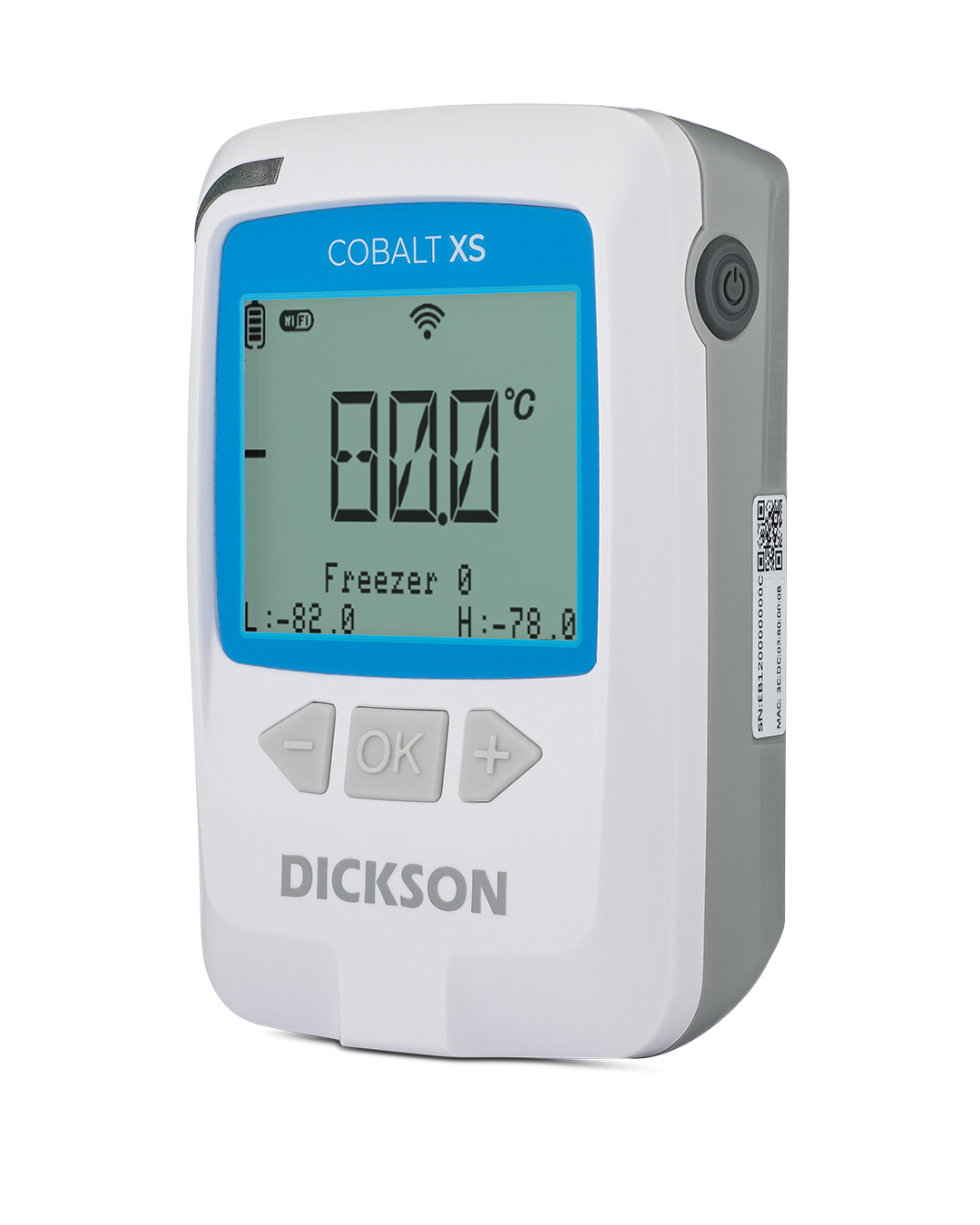

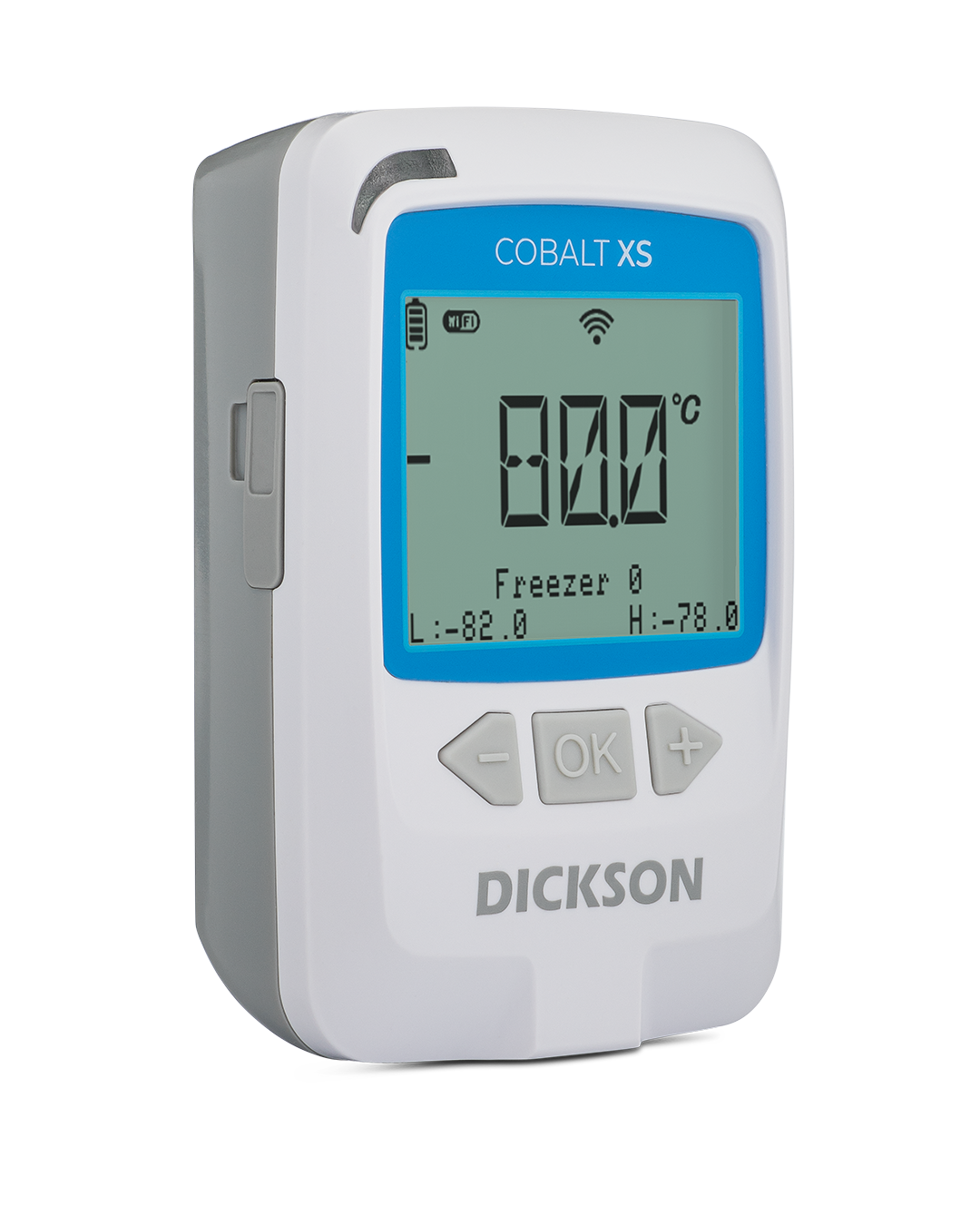

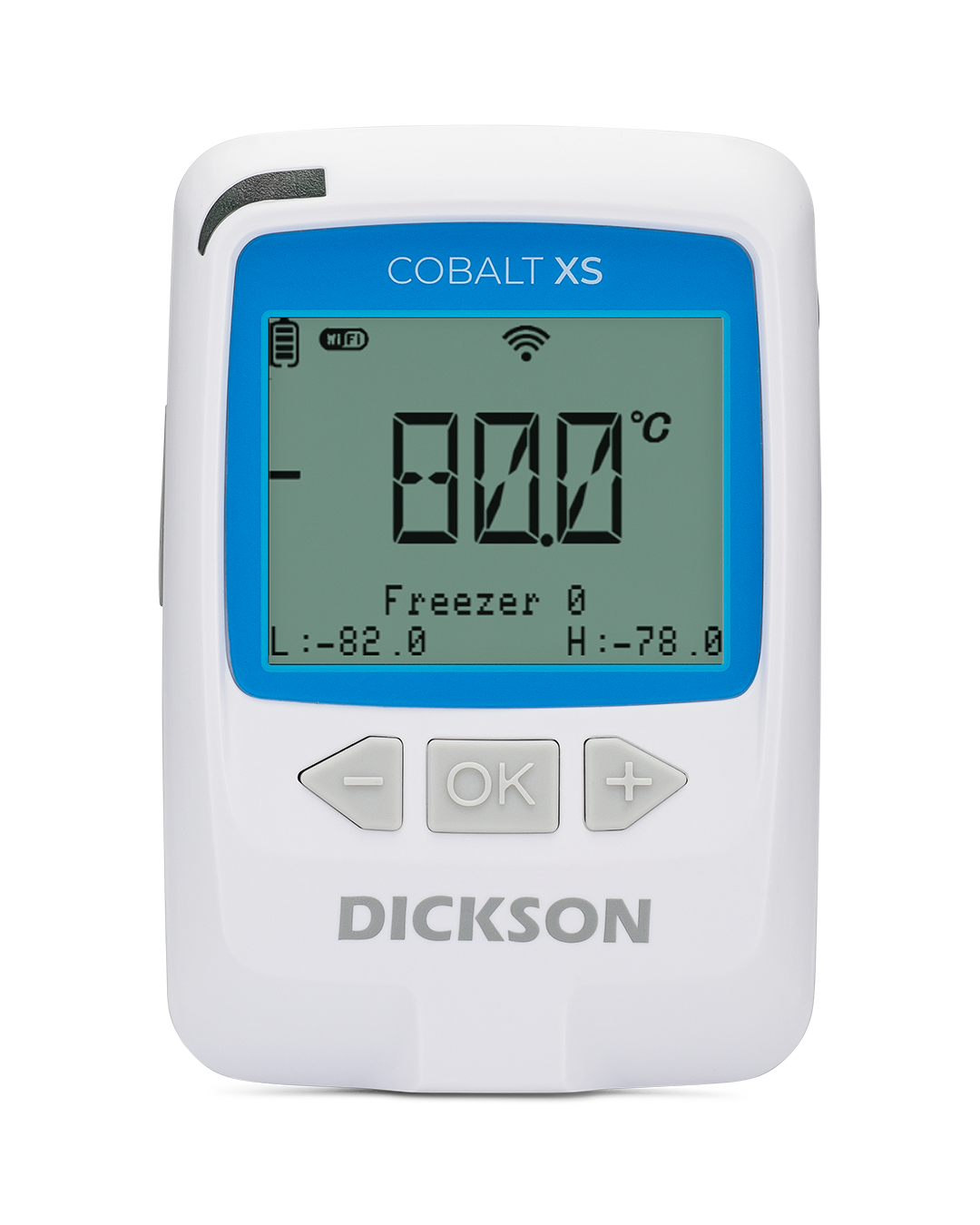

Cobalt XS Wifi is the latest addition to Dickson’s data logger range for the OCEAView monitoring solution. The Cobalt XS Wi-Fi data logger uses Wi-Fi wireless
technology to leverage your existing WiFi network.
Ideal for small sites in the life science, agri-food, and logistics sectors, Cobalt XS Wi-Fi gives you a cost-effective, reliable way to monitor environmental parameters for your sensitive assets, storage facilities, products, equipment, and more.
The Cobalt XS WiFi data logger implements easy network integration with Wi-Fi
Dickson’s Smart-Sensor technology makes maintenance easier by storing all calibration information directly in the sensor, providing high accuracy and on-the-fly sensor swapping for recalibration.
Applications
Refrigerators •Freezers • ULT freezers • Nitrogen tanks • Water baths • Ovens • Incubators • Autoclaves • Cold rooms • Cleanrooms • Warehouses • Industry standard equipment with 4-20 mA / 0-5 V / 0-10 V output
Supported Dickson sensors
Temperature • Temperature & relative humidity • Universal • CO2 & Temperature & Relative humidity • Dry contact input
Sensor calibration options (depending on sensor)
ISO/IEC 17025 accredited • In-house laboratory certified (non-accredited) • NATA-traceable • Recalibration via sensor exchange
Measurement points
Up to two simultaneous measurement points • One connector for single, dual, or triple sensor probes (note: up to two measurement points can be used simultaneously)
Display & interface
2.4” (6.1 cm) LCD screen for setup, server synchronisation, latest readings, power indicator, battery level, signal strength • Temperature in °C or °F
Monitoring software
Integration with OCEAView Cloud, OCEAView On-premises
Alarms
Alarms and warnings indicated by flashing light • Detected directly by data logger and transmitted to monitoring platform for fast user notification • 3 high & 3 low limits (with programmable delay for each limit)
Connectivity
Wi-Fi: 2.4 GHz (2.412 GHz to 2.472 GHz) • 802.11n (HT20) Wi-Fi 4; 802.11ax (20 MHz): Wi-Fi 6 • Integrated antenna
Data management
32,000 readings per sensor (about 32 weeks of data with a reading interval of 10 minutes) • Unlimited storage of uploaded data on the web platform
Power
Includes two 3.6 V user-replaceable lithium batteries (use only SAFT LS17500 batteries in Cobalt XS Wi-Fi data
loggers, other battery types not supported) • Up to 1 year battery life under normal conditions, with screen and Wi-Fi power saving activated • Maximum current consumption 300 mA • Maximum power 1.08 W • AC adapter and USB
cable optional (not included)
Operating conditions
0 °C to +50 °C • 0 to 90% relative humidity (non-condensing) • Product may be used at a maximum altitude of 2,000 meters (6,562 ft)
Storage conditions
0 °C to +50 °C (+32 °F to +122 °F) • 0 to 90% RH (non-condensing) • Optimal storage around 25 °C (77 °F)
Casing & dimensions
ABS plastic casing • 69 x 107 x 31 mm (2.7 x 4.22 x 1.22 in.) • Weight with battery: 130 g (4.6 oz.)
Mounting & installation

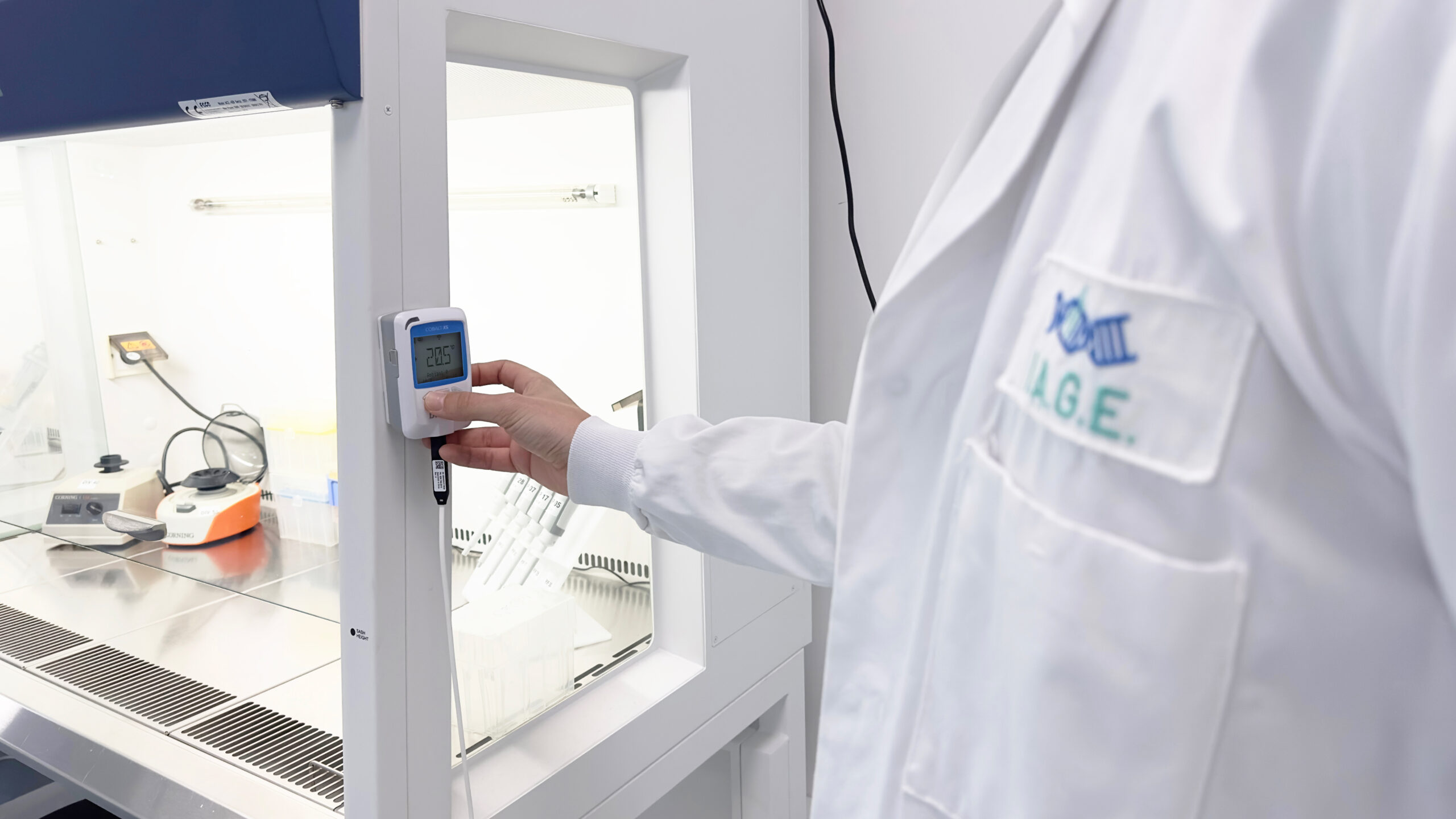

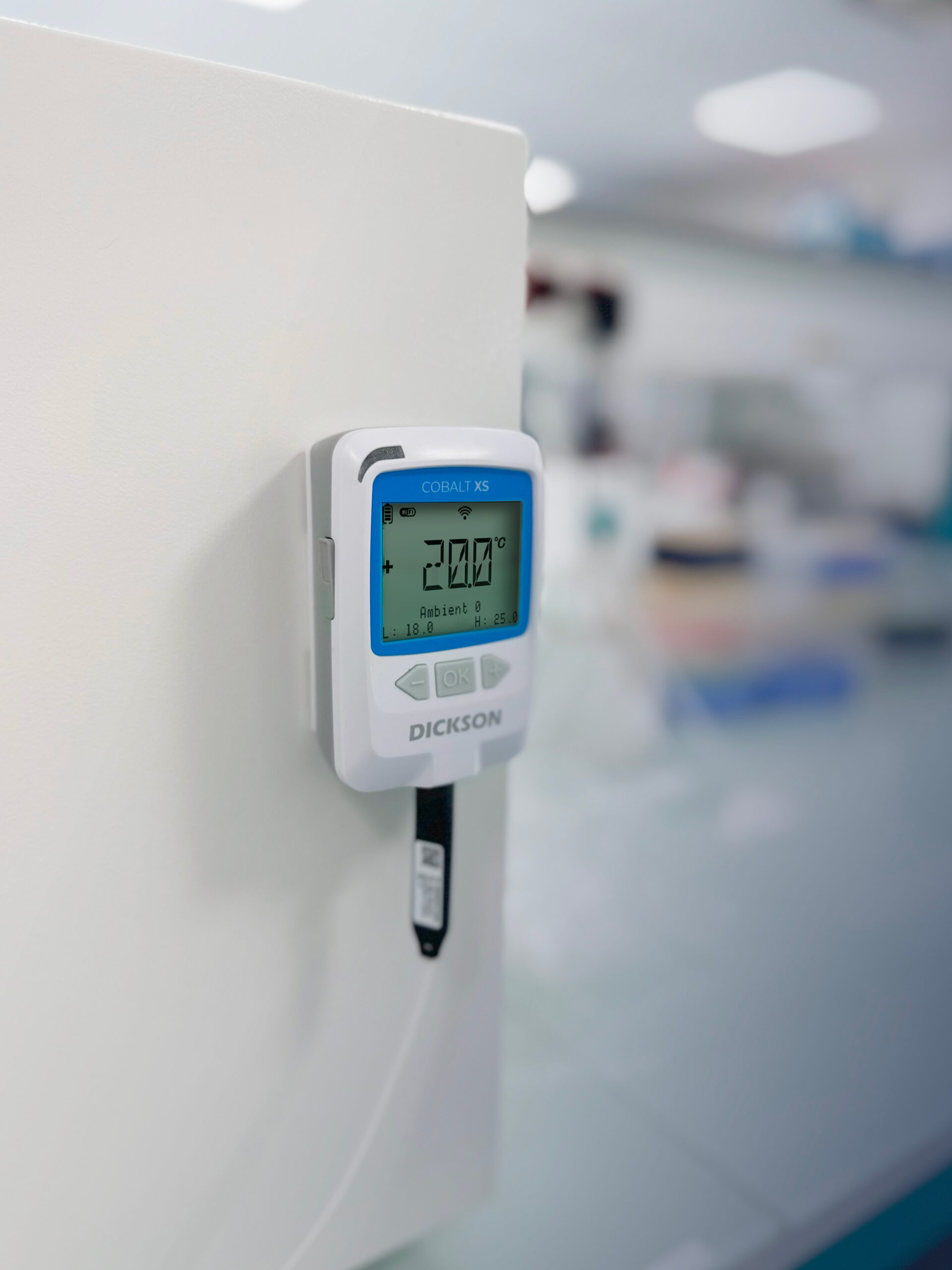

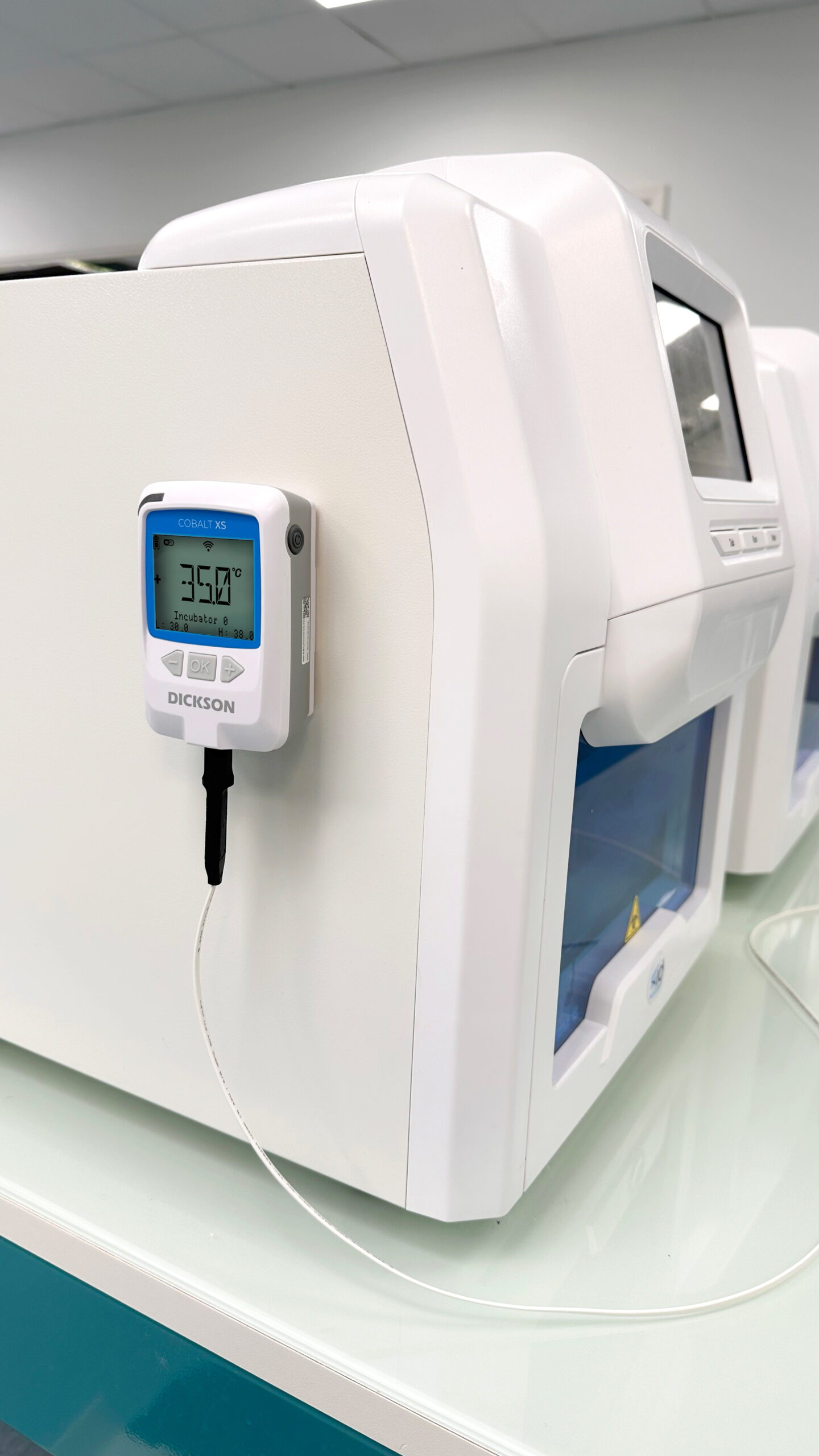

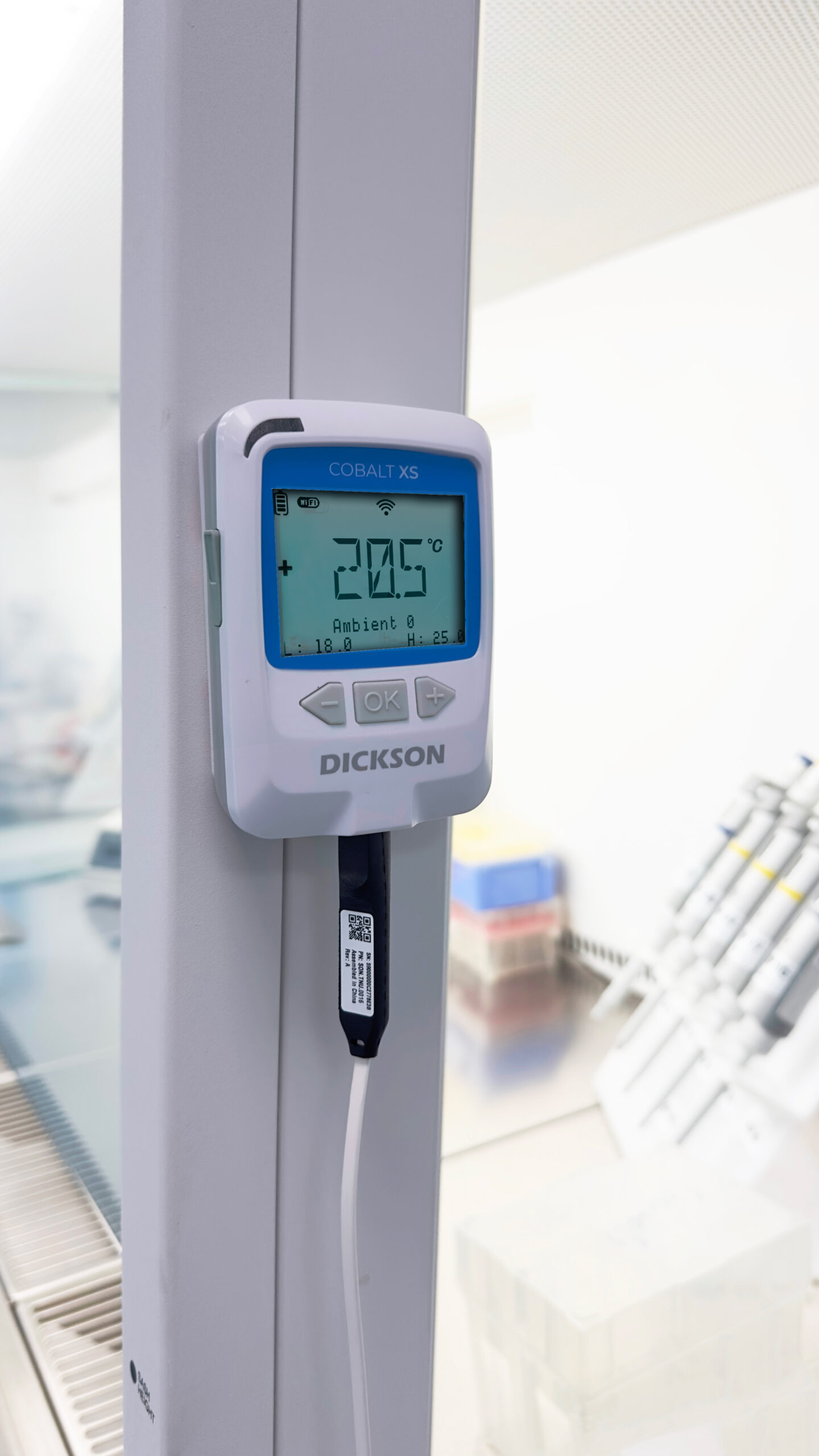

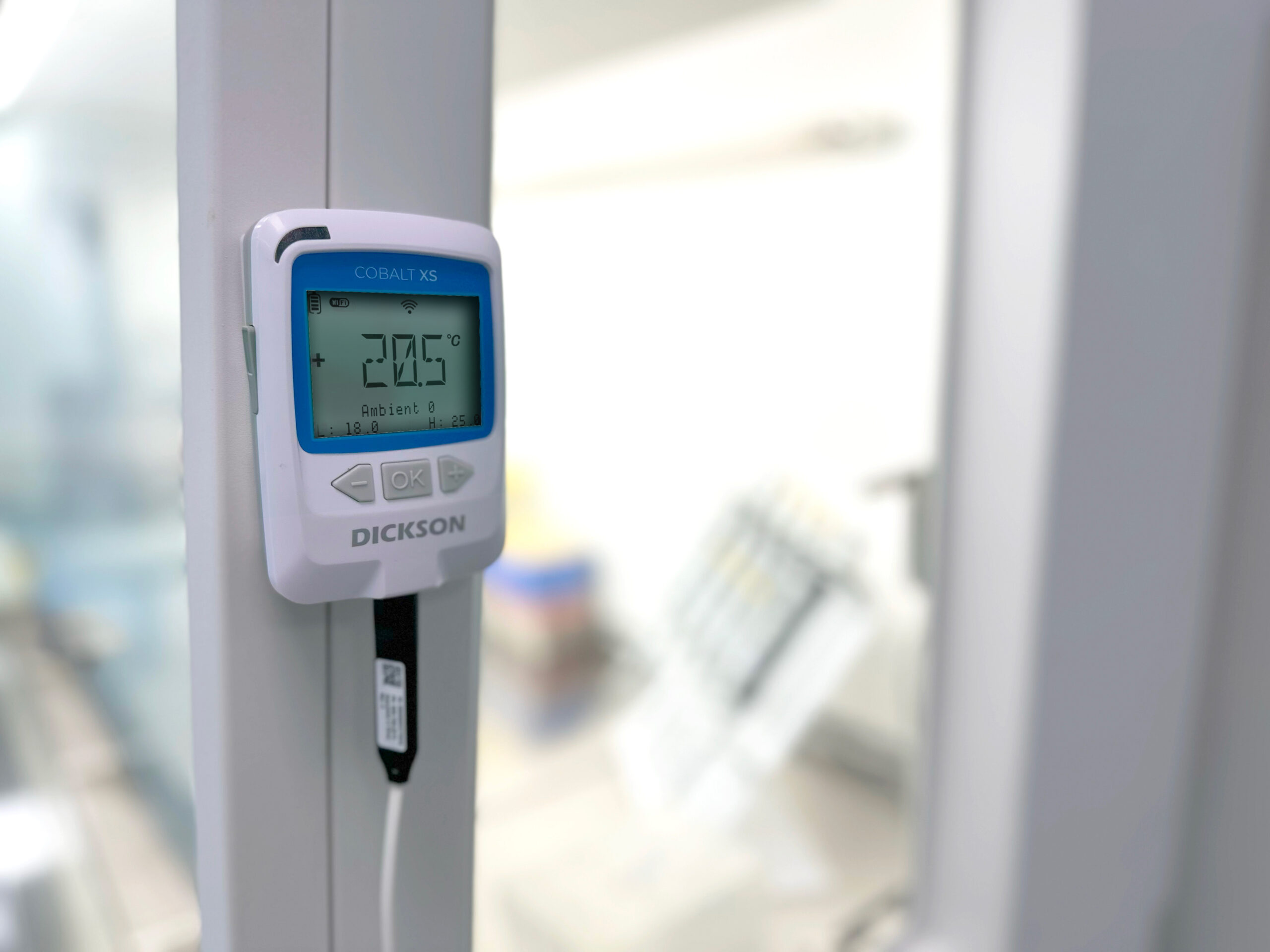

Includes wall-mount cradle with magnets and anti-slip rubber pad, screws or Velcro® • For indoor use only in non-harsh environments
Certifications
CE – RED DA • FCC • ISED • SIRIM
